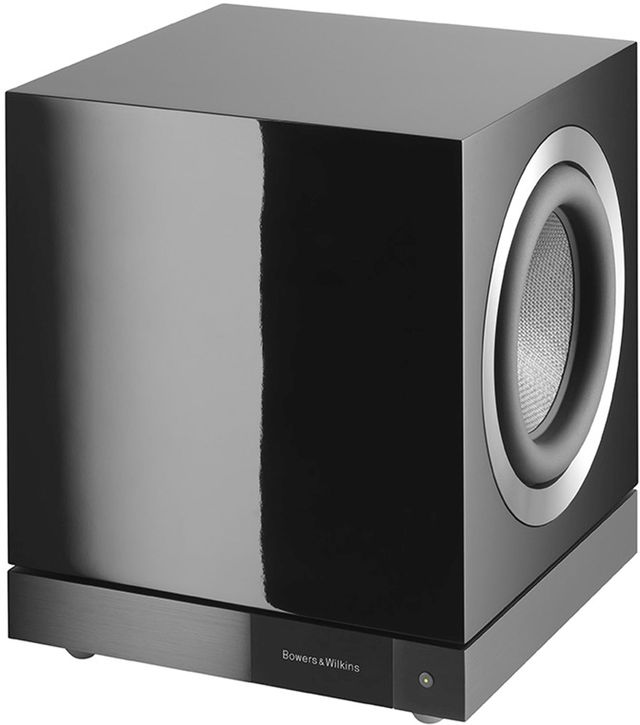

DB3D's tight, powerful, dramatic bass and compact size make it the perfect match for the 804 D3 and 805 D3 speakers.
DB3D's ultra-rigid low-resonance enclosure comes in three finishes to match 800 Series Diamond and 700 Series loudspeakers.
Compact model packs a mighty punch. Controllable, dramatic bass from a subwoofer so small it fits almost anywhere: DB3D is a space-saving high-performance design.
Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil™ cone.
The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.
Digital amplification is cool-running and energy efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.
By placing control in the palm of your hand, our subwoofer app not only makes our DB Series subwoofers a snap to set up, it also helps maximize your sound quality.
|Description||DB Series subwoofer|
|Drive Units||2 x 200mm (8in) Aerofoil™ cone drive units in a balanced configuration|
|Frequency Range (-6dB)||8.5Hz - 500Hz|
|Frequency Response -3dB (centered on level at 100Hz)||10Hz - 350 Hz|
|Max Power Output||1000W|
|Inputs||2 x XLR, 2 x RCA, 2 x 3.5mm 12V trigger, RS-232 - 9-pin D connector|
|Dimensions||Height: 360mm (14.1in), Width: 320mm (12.6in), Depth: 300mm (11.8in)|
|Cabinet Finishes||Gloss Black, Satin White, Rosenut|
|Grille Finishes||Black, Grey|
|Product Weight (lbs.)||55.1|
|Woofer Size||8" x 2|
|Speaker Type||Powered Subwoofers|
|Maximum Power Handling (Watts)||1000|
|Speaker Size||8 x 2|
|RMS Power Handling (Watts)||1000|
