Leon® Terra TrAx60 Speaker

Model #: TrAx60

$1,100.00

At a Glance

The Axis series from Terra provides that same all-climate made in Maine endurance as the Tr50 and Tr60 but with speakers designed to be mounted almost flush within walls or ceilings.

WarningProposition 65 Warning for California Residents
Leon® Terra TrAx60 Speaker

Misc. Specs

Frequency Response65Hz - 20kHz 3dB
WaterproofYes
RMS Power Handling (Watts)125
ColorWhite
Impedance8 ohms
Maximum Power Handling (Watts)125
Sensitivity88dB (1 Watt @ 1 Meter)
Speaker TypePowered Stereo Speakers

General

Drivers6.5" ACAD Bass/Mid
TweeterCoaxial 1" Aluminum
Temperature Range-20˚C - 105˚C
GrillMicro-Perf Aluminum Round or Square
Power Handling125 Watts
Frequency Range65Hz - 20kHz 3dB
Impedance8 Ohms
Sensitivity88dB (1 Watt @ 1 Meter)
Nominal Coverage Angle90 degrees conical
Coverage Angle (1 Khz To 6 Khz)105 degrees
Rated Maximum SPLAverage: 109 dB Peak: 115 dB
Frame Dimensions9.25" Diameter [235mm] 4.5" Depth [115mm]
Cutout Dimensions7.75" Diameter [191mm]
Frame SizeRound Frame - 9 5/8" [244mm] / Square Frame 9 5/8" [244mm] x 9 5/8" [244mm]
Net Weight (Each)6.3 lbs. / 2.9 kg
Waterproof Rating*IP67 Meets or exceeds MIL-STD-810G standards
Please Note*CA Speakers must be sealed under the flange for the waterproof rating.

Leon® Terra TrAx60 Speaker

Model #: TrAx60
Available in Store Only
$1,100.00

At a Glance

The Axis series from Terra provides that same all-climate made in Maine endurance as the Tr50 and Tr60 but with speakers designed to be mounted almost flush within walls or ceilings.

Get to know this product.

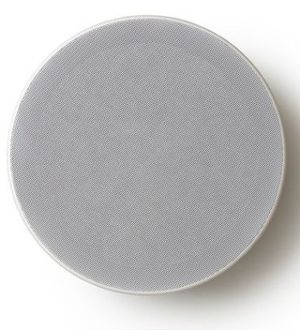

The TrAx60 (Round or Square Grill) is among the latest in Terra’s line of high performance installed loudspeakers. It incorporates our most advanced 6.5-inch ACAD fluid cooled woofer/midrange combined with a 1-inch co-axial, fluid cooled aluminum alloy tweeter. The tweeter is mounted in a tilt-able, aim-able socket to optimize performance even if the CA 6 must be located in a less than ideal sonic location.

The TrAx60-DT is a single-point-stereo version of the TrAx60 and ideal for those locations where sound quality is important, but space is at a premium. Both models include front mounted switches to adjust in-room frequency response to their surroundings. R = round bezel – S = square bezel.

All-climate

High-quality Sound

No Maintenance

Lifetime Guarantee

Specifications

General

Drivers6.5" ACAD Bass/Mid
TweeterCoaxial 1" Aluminum
Temperature Range-20˚C - 105˚C
GrillMicro-Perf Aluminum Round or Square
Power Handling125 Watts
Frequency Range65Hz - 20kHz 3dB
Impedance8 Ohms
Sensitivity88dB (1 Watt @ 1 Meter)
Nominal Coverage Angle90 degrees conical
Coverage Angle (1 Khz To 6 Khz)105 degrees
Rated Maximum SPLAverage: 109 dB Peak: 115 dB
Frame Dimensions9.25" Diameter [235mm] 4.5" Depth [115mm]
Cutout Dimensions7.75" Diameter [191mm]
Frame SizeRound Frame - 9 5/8" [244mm] / Square Frame 9 5/8" [244mm] x 9 5/8" [244mm]
Net Weight (Each)6.3 lbs. / 2.9 kg
Waterproof Rating*IP67 Meets or exceeds MIL-STD-810G standards
Please Note*CA Speakers must be sealed under the flange for the waterproof rating.

Misc. Specs

Frequency Response65Hz - 20kHz 3dB
WaterproofYes
RMS Power Handling (Watts)125
ColorWhite
Impedance8 ohms
Maximum Power Handling (Watts)125
Sensitivity88dB (1 Watt @ 1 Meter)
Speaker TypePowered Stereo Speakers
